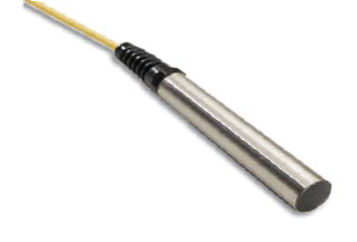

WQ101
Global Water’s WQ101 Temperature Sensor is a rugged and reliable device for highly accurate submersible water temperature measurement. The sensor’s probe is molded to 25' of marine grade cable, with lengths up to 500' available upon request. The WQ101 has a two-wire configuration for minimum current draw. The unit’s electronics are completely encapsulated in marine grade epoxy within a stainless steel housing.
Technical specifications
Range | -50 to 50 °C |
Accuracy | ±0.1 °C |
Resolution | - |
Response time | <5 s |
Depth rating | Open Water: 0 - 200 psi Online: 50 psi |
Supply voltage | 10 - 36 VDC |
Communications | 4 - 20 mA |
Memory | - |
Dimensions | Open Water: Ø19 mm x 114 mm Online: Ø43 mm x 203 mm |
Weight in air | Open Water: 0.227 kg Online: 0.272 kg |
Weight in water | - |
Materials | Stainless Steel |
