SeaSPY

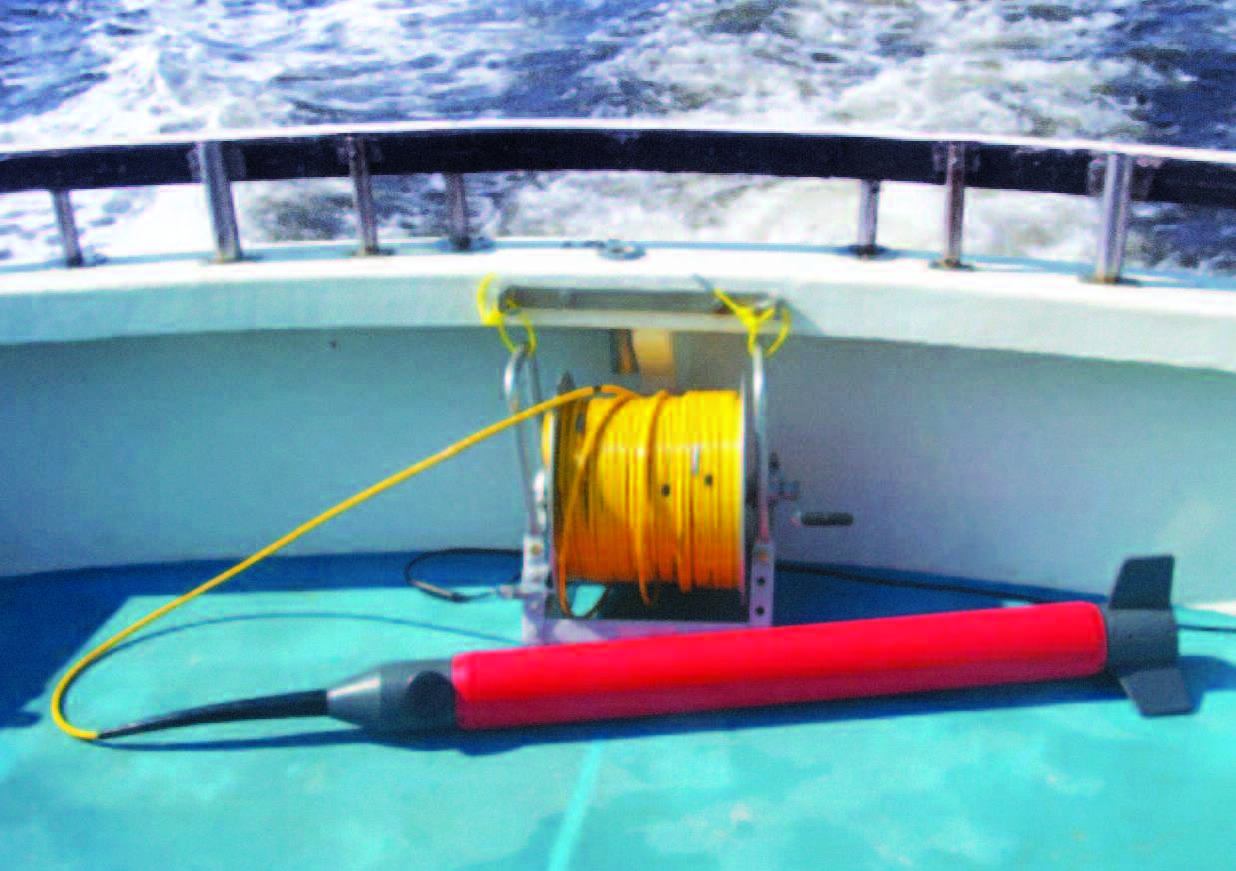

The SeaSPY connector is a custom brass underwater connector that supports a tonne of towing force. A PVC nose cone protects it from side impacts, while maintaining a streamlined tow body. We have never lost a SeaSPY from the connector, except for the time someone threw one overboard without connecting it to the cable. While there’s some human error no mag can account for, the story has a happy ending: the customer went back a year later and found their SeaSPY in working condition. SeaSPY’s sleek design resists snags.e inexpensive and field replaceable tailfins are the only protruding element, and they are designed to snap off should they ever get snagged on rocky outcroppings. The SeaSPY towfish is made of ¼" super strong fiberglass coated with a ‘bumper’ layer of polyurethane for extra shock absorption. Should even a drop of water penetrate the towfish, a leak detector warning appears on your screen to inform you. Call us overprotective, but in the event of a breach, SeaSPY’s electronics module is encased in a polycarbonate housing with ‘O’ ring seals for another layer of security. The sensor itself is suspended on shockmounts to ensure the quality of your data isn’t influenced even if you drag SeaSPY along the sea floor.

Manufacturer

Marine Magnetics Corp.
Marine Magnetics Corp.

135 SPY Court
L3R 5H6 ON Markham
USA

+1 (905) 479-9727

+1 (905) 479-9484

http://www.marinemagnetics.com

Technical specifications

Operating range18000 to 120000 nT
Sensitivity0.01 nT/√Hz
Resolution0.001 nT
Absolute accuracy0.1 nT
Gradient tolerance> 10000 nT/m
Heading error-
Sampling rate0.1 to 4 Hz
Depth rating300, 1000, 3000 or 6000m
Power requirement15 - 35 VDC or 100 - 240 VAC, 3W
CommunicationsRS232
Operating temperature-45 to 60 ºC
DiameterØ127 x 1240 mm
Weight in air16 kg
Weight in water2 kg
