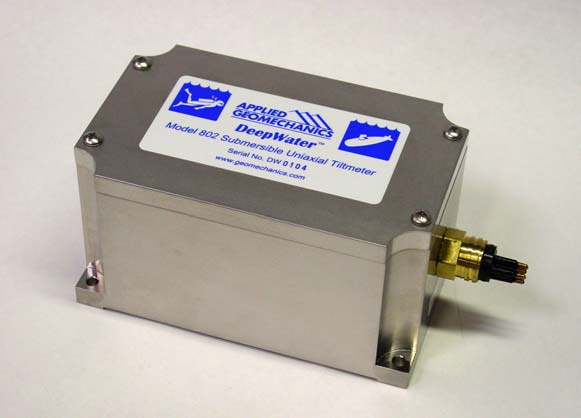

Model 802-H DeepWater
The Model 802 DeepWater is a precision voltage-output tiltmeter designed for underwater measurements and other applications under high pressure. The housing is machined from a solid piece of 316 stainless steel and incorporates a high-pressure neoprene connector (700 bars depth rating).
Inside are a gravity-referenced electrolytic tilt sensor and our low-noise electronics, delivering sensitivity, high dynamic range and long-term stability under the most demanding conditions. DeepWater tiltmeters are excellent choices for monitoring dams, oil platforms, pipelines and underwater machinery. DeepWater tiltmeters are also available with 4-20 mA and digital outputs.
Manufacturer
Applied Geomechanics Incorporated
140 Chestnut Street
San Francisco, CA 94111
USA
+1 (415) 364-3200
+1 (415) 861-1448
Technical specifications
| Type | Uniaxial |
| Angular range | ±0.5º |
| Scale factors | 0.1º/V (single-ended), 0.05º/V (differential) |
| Resolution | <0.0001º |
| Repeatability | <0.0002º |
| Linearity | 1% of full span typical |
| Temperature coefficient | Scale factor: KS < 0.02%/ºC Zero shift: KZ = ±0.0002 |
| Time constant | 1.75 sec |
| Tilt output | ±5 VDC single-ended ±10 VDC differential |
| Depth rating | 700 bar |
| Power | 8 - 18 VDC |
| Operating temperature | −25 to 70 °C |
| Size | 149 x 91 x 82 mm |
| Weight in air | 5 kg |
| Material | 316 Stainless Steel Enclosure |
