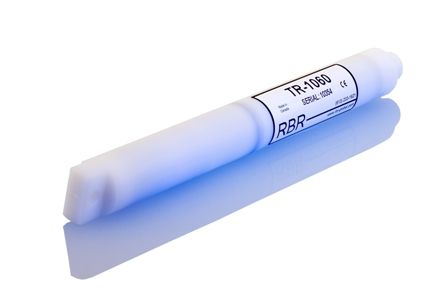

TR-1060

The TR-1060 is a 25 mm diameter version of TR-1050 and uses less power, but has the same or better performance with a 24 bit a/d. This compact, extremely rugged, high accuracy device is ideal for coastal and deep water oceanography, freshwater, groundwater, and ice research. The Model TR-1060 is calibrated to an accuracy of ±0.002 °C (ITS-90 and NIST traceable standards). Drift has been measured at better than 0.002 °C/year. The thermistors used in the TR-1060 are available in two housings. The standard thermistor has a time constant of less than 3 seconds. The optional fast thermistor has a time constant of about 0.1 seconds. The TR-1060 can be deployed for a period of up to three years by using one high-power 3 V lithium cell battery (CR123A). A new mechanical design mitigates condensation or risk of damage during battery replacement or data download. 8 MB of storage provides sufficient memory for 2,400,000 samples and a full set of samples can be taken by one battery. Flash memory ensures data retention for 20 years.

Manufacturer

RBR Europe Ltd.
RBR Europe Ltd.

17, Cratlands Close
Stadhampton
Oxford
OX44 7TU
United Kingdom

+44 (0) 1865 890979

+44 (0) 1865 890979

http://www.rbr-europe.com

Technical specifications

Range-5 to 35 ºC (extendable)
Accuracy± 0.002 ºC
Resolution< 0.00005 ºC
Response time3 s
Depth rating1200 m
Supply voltage3 VDC
CommunicationsRS232
Memory8 Mbyte Flash (2,400,000 samples)
DimensionsØ25 mm x 240 mm
Weight in air0.15 kg
Weight in water0.055 kg
Materials-
