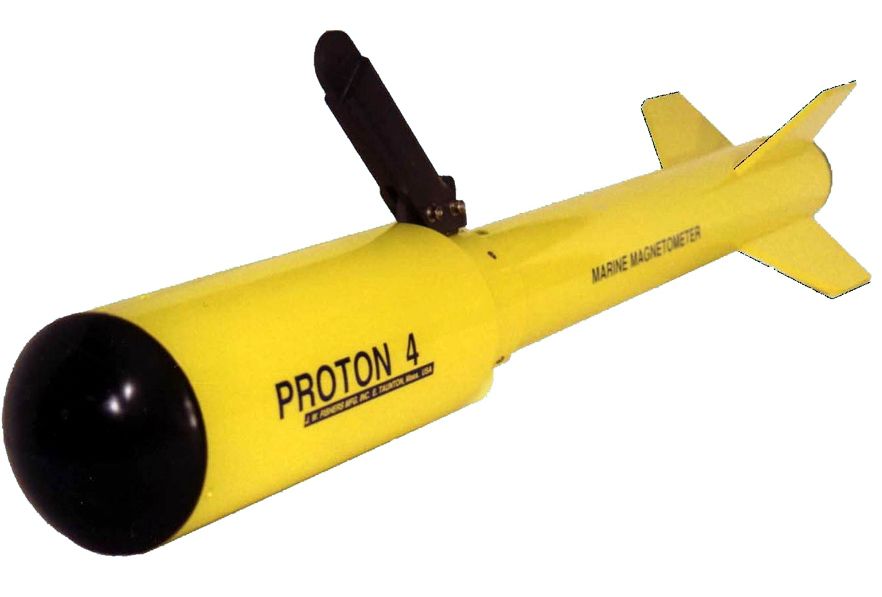

PROTON 4

The PROTON 4 is a fourth generation proton magnetometer from JW Fishers. It is a top performing microprocessor driven marine magnetometer detection system. With a one gamma sensitivity, it has the maximum usable sensitivity for a towed magnetometer. A two second cycle time gives a strong return signal and is fast enough to detect even small iron/steel targets. The PROTON 4 features a triaxial noise-cancelling sensor that allows omnidirectional towing without heading error or dead zone. The system is fully digitized and displays it’s output on an easy to read 5 digit LCD that is backlit for night operations. The optional built-in printer creates a permanent record of the mag readouts. The gamma reading is printed out on each cycle and, with input from a GPS receiver, the target’s position is also printed out. An alarm informs the operator when the readout changes. An RS232 output and software package are also available. The Fish has excellent hydrodyamic characteristics moving smoothly through the water at tow speeds up to 10 knots. A 2-3 knot tow speed is recommended for small targets. With the optional Altimeter, precise distance off the bottom can be maintained. For deep water towing, the Fish is towed behind a downrigger. The Fish can be towed at almost any speed, but should be towed slow to locate small targets or when towing the Fish deep. A sensitivity switch allows easy pinpointing of targets. Modular construction allows easy field repair, should it ever be necessary. The PROTON 4 is covered by a full TWO YEAR WARRANTY.

Manufacturer

JW Fishers Mfg.
JW Fishers Mfg.

1953 County Street
02718 MA East Taunton
USA

(508) 822-7330
(800) 822-4744

(508) 880-8949

http://www.jwfishers.com

Technical specifications

Operating range-
Sensitivity1 nT/√Hz
Resolution-
Absolute accuracy-
Gradient tolerance-
Heading error-
Sampling rate2 to 4 Hz
Depth rating60, 150 or 300 m
Power requirement24 VDC, 40 W
CommunicationsRS232
Operating temperature-
DiameterØ152 mm x 1321 mm
Weight in air21.8 kg
Weight in water-
