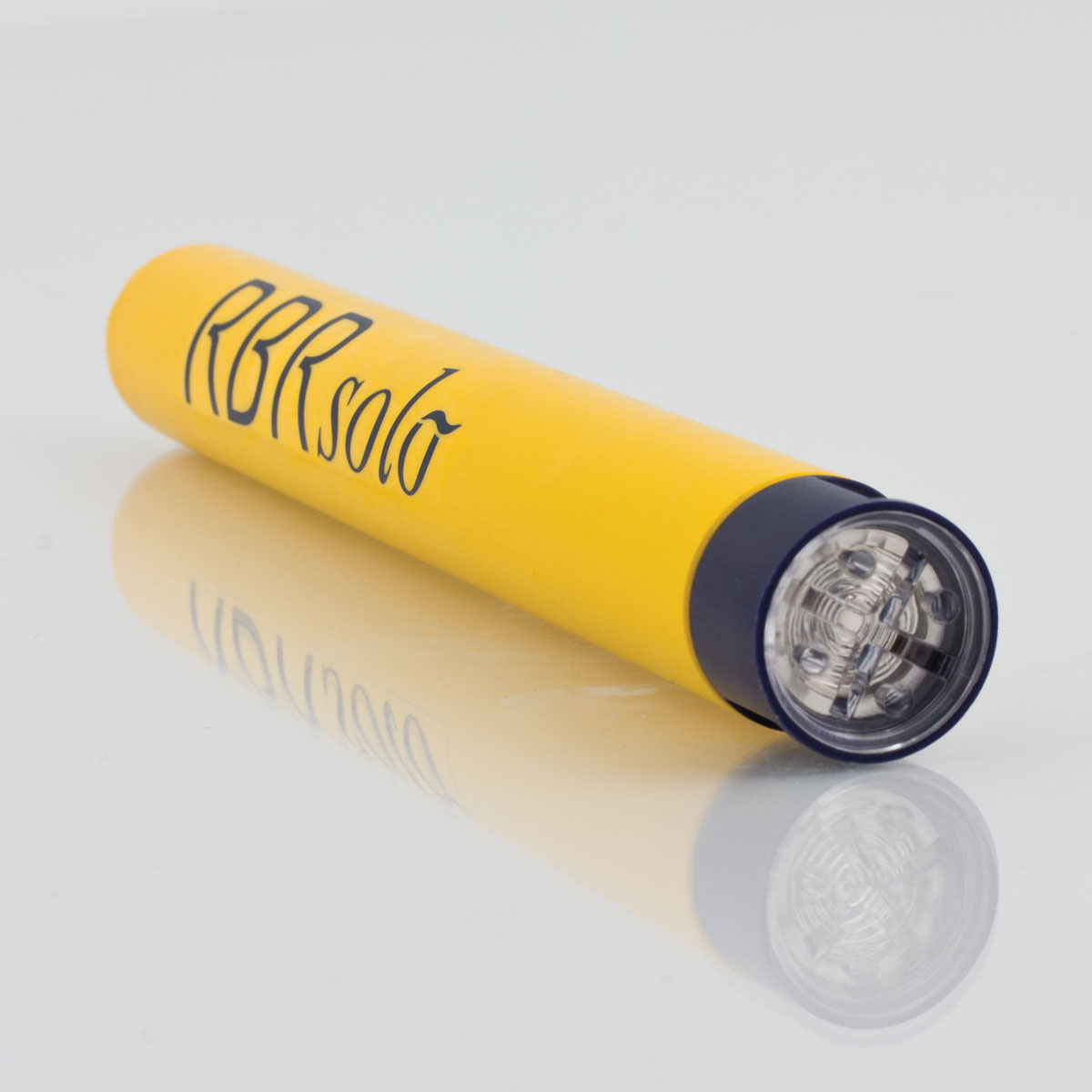

RBRsolo D|tide

The new single tide recorder provide the ease and flexibility to establish the best sampling regime for your measurements.This loggers take averages of the pressure readings over longer periods of time and at rates
up to 16Hz to provide accurate tide level readings. Tide data exports to Matlab®, Excel®, or text files make post processing with your own algorithms easier. Ruskin performs wave analysis, to provide basic information about the wave composition (e.g. wave energy, H1/3, T1/3, Tave and Have). Like all RBR products, the RBR wave and tide loggers are designed to be
easy to configure and easy to use.


RBR Europe Ltd.
RBR Europe Ltd.

17, Cratlands Close
OX44 7TU
United Kingdom

+44 (0) 1865 890979

+44 (0) 1865 890979


Technical specifications

Depth rating20/50m (dbar)
Measurement rangeAccuracy: ±0.05% full scale Resolution: <0.001% full scale Time Constant: <10ms
Housing material
Power supplyOne 3.6V LiSOCl2 ; AA battery External Power: Requires 6-18V DC ~2mA
Power consumption
Weight125g in air
SizeLength: 210mm; Diameter: 25.4mm
Operating temperature range
Max. current absorption20/50m (dbar)
AccuracyAccuracy: ±0.05% full scale
Output signal
