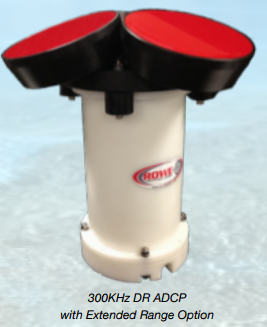

SeaPROFILER DF 300kHz 3 in
The SeaPROFILER ADCP’s are well suited for real-time current
profiling applications such as coastal monitoring, where a bottommounted
or surface-deployed configuration is used with a hard-wired
communications and power source. The ability for the SeaPROFILER
to also track the bottom allows it to be used in moving boat applications
as well
Manufacturer
RoweTech
12655 Danielson Court,
Suite 306
Poway, CA 92064 USA
USA
+1 858 842 3020
+1 858 842 3021
Technical specifications
| Frequency | 300kHz |
| Max. profiling range | 150m |
| Cell size | 2cm minimum |
| Operating depth | 6000m |
| Max. transmit | |
| Blank distance | 0.6 |
| Accuracy | ±0.70%,±2 mm/s |
| Max. water velocity | 20cm/s@4mcell depth |
| Number of cells | up to 200 |
| Max. ping rate | |
| Transducer | 3-in. Piston |
| Transducer beam angle | Four beams Inclined 20˚ in 90°azimuth increments |
| Housing | Plas_c/Aluminum |
| Communication | RS485, RS232, 100 Base T Ethernet (SC only) |
| Internal memory | 8GB |
| Transducer assembly diameter | 225mm |
| Housing diameter | 200mm |
| Overall length | 195mm(300-1000m) 221mm (3000-6000)) |
| Weight in air | 9.1kg |
| Weight in water | 1.8kg |
| Temperature accuracy | +/-0.15ºC |
| Temperature range | -5 - 70ºC |
| Tilt accuracy | <1°RMS |
| Tilt range | Roll ±180°,Pitch±90° |
| Compass accuracy | 1ºRMS |
| Compass max. tilt | 0-360 |
