SP200-SM

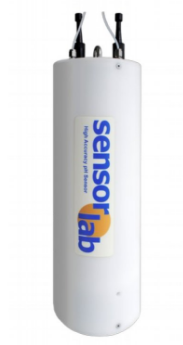

SP200-SM High Accuracy in Situ pH Sensor
The SP200-SM is a High accuracy colorimetric pH sensor designed for in situ operation in shallow waters. The SP200-SM pH sensors has no significant drift, even after operating for several months. The sensor can be autonomously operated thanks to its internal Li-Ion battery.
Manufacturer
SensorLab
SensorLab S.L.
Edificio Polivalente II, Oficina 16
Parque CientÃfico Tecnológico
Campus Universitario de Tafira
35017 Las Palmas de Gran Canaria
Spain
+34 928459930
Technical specifications
| Depth rating | Shallow waters |
| Max. pressure | 2 bar |
| Housing material | White POM |
| Power supply | 8 – 20 Vcc |
| Power consumption | |
| Weight | 5 Kg |
| Size | 520x150 mm (height x diameter) |
| Accuracy | ±0.005 pH units |
| Resolution | ± 0.002 pH units |
| Connector | RS232, USB |
| Calibration | |
| Temperature compensation | ±0.1ºC |
| Operating temperature range | (-5ºC to +35ºC) |
