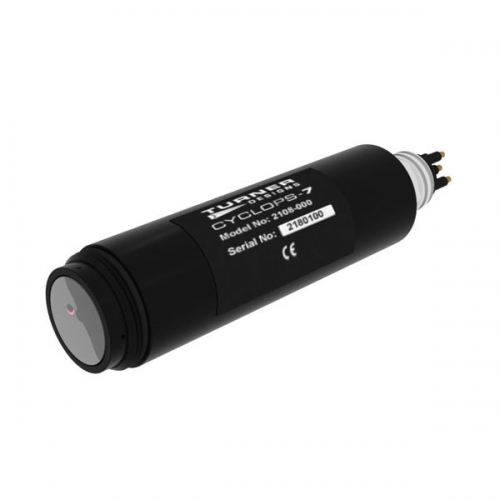

Cyclops 7-T
Click to zoom
View info document (261.44 KB)
View manual file (658.7 KB)
Observatory reference: ESTOC[2014-****]
Standard: ESTOC
The CYCLOPS-7â„¢ line of submersible sensors is a high performance, compact sensor at a significantly lower price than traditional submersible sensors. The CYCLOPS-7â„¢ combination of price, performance and size makes the sensor very attractive for oceanographic, freshwater and dye tracing applications.
CYCLOPS-7â„¢ was designed specifically for integration into any platform that supplies power and datalogging.
Manufacturer
Turner Designs, Inc.
845 W. Maude Avenue
Sunnyvale, CA 94085
USA
+1 (877) 316-8049
+1 (408) 749-0994
+1 (408) 749-0998
Technical specifications
| Turbidity range | 0-3000 NTU |
| Resolution | 0.05 NTU |
| Accuracy | - |
| Linearity | 0.99 R^2 |
| Light source wavelength | Light Emitting Diode- IR |
| Depth rating | 600 m |
| Power supply | 3 - 15 VDC |
| Max. power consumption | < 300mW typical |
| Internal memory | - |
| Communications | - |
| Dimensions | 14.48x2.23Ø cm (SSt or Ti); 14.48x3.18Ø cm (Delrin) |
| Weight in air | 142 g |
| Weight in water | - |
| Materials | Stainless steel, Plastic or Titanium |
