PPS 3/3
Click to zoom
View info document (138.92 KB)
Observatory reference: E2-M3A[2013-****]; E1-M3A[2014-****]; Pylos
Standard: E2-M3A; E1-M3A; Pylos

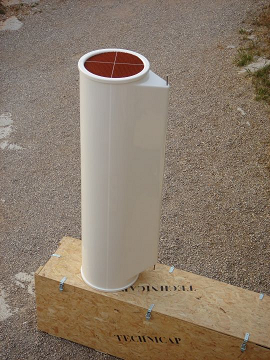

The P.P.S.3/3 (collecting area : 0,125sqm) is cylindroconical traps wich is particulary adapted to high sedimentation regimes (e.g. ocean boundaries, lakes) and deployment from small research vessels. It can collect 12 consecutives samples.
Manufacturer
Technicap
216 Chemin du Braousch
06320 LA TURBIE
France
+33 (0) 492 10 85 68
+33 (0) 492 10 82 98
Technical specifications
| Depth rating | 5000m (6000m on request) |
| Weight in air | 40 kg |
| Max. deployed time | 18 months |
| Operating temperature | - |
| Number of samples | 12 |
| Bottle volume | 250ml or 500ml (on request) |
| Pressure housing | - |
| Power supply | 12 volt AA alkaline batteries pack |
| Communications | USB Connector with special programm for XP and VISTA |
| Housing material | GRP, PETP, Polypropylen, Aluminium and Titanium |
