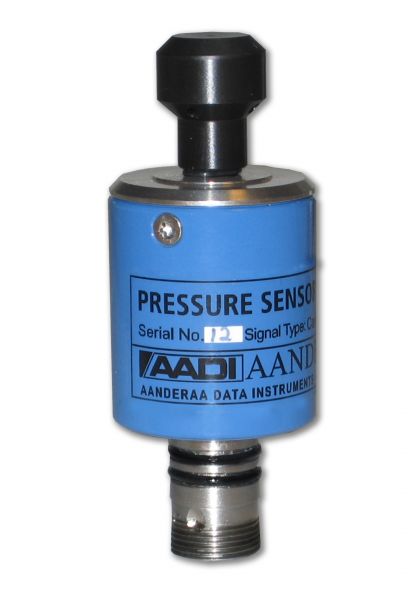

Pressure Sensor 4017

Pressure Sensor 4017Click to zoom

Print this page

View info document (436 KB)

More info on the web

Observatory reference: DELOS A[2009-****], DELOS B[2009-****]

Standard: DELOS A, DELOS B

Aanderaa pressure sensors are compact, intelligent pressure sensors designed for use on Aanderaa Data Instruments dataloggers as well as in other measuring systems.

The sensors are based on a silicon piezoresistive bridge sampled and temperature compensated by an advanced Digital Signal Processor. Since all calibration and temperature compensation data is stored internally,pressure can be presented directly in engineering units without any external calculation. The range on both SR10 outputs is user configurable, i.e. confine the range to get optimal resolution.

The sensor is also available in a vented version. This means that the sensor is automatically compensated for air pressure. This is done by use of a compensating unit placed in air and an air-pipe in the cable between the sensor and compensating unit.

Manufacturer

Aanderaa Data Instruments Inc.
Aanderaa Data Instruments Inc.

P.O.Box 34 Slåtthaug
N-5851 Bergen
Norway

+47 55 60 48 00

+47 55 60 48 01

http://www.aadi.no

Technical specifications

Depth rating-
Measurement range6000 m
Housing materialTitanium and Epoxy coating
Power supply6 to 14Vdc
Power consumption-
Weight160 g
Size36Øx86mm
Operating temperature range0 to 36°C
Max. current absorption50 mA
Accuracy±0.04% FSO
Output signal-
