SP101-SM

SP101-SMClick to zoom

Print this page

View info document (1.7 MB)

More info on the web

Observatory reference: ESTOC[2014-****]; E1-M3A[2014-****]

Standard: ESTOC; E1-M3A

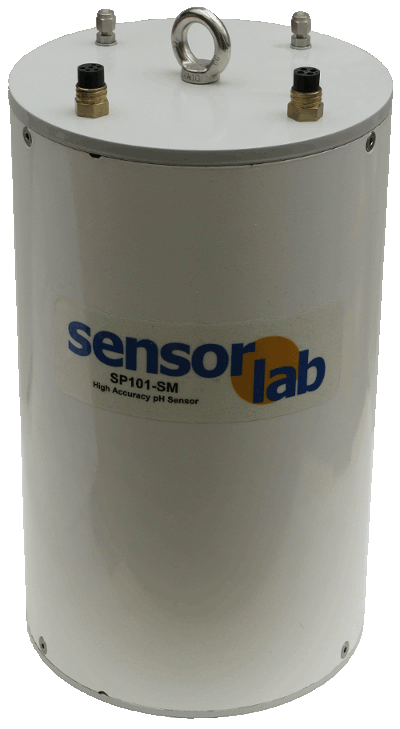

The SP101-SM is a rugged and extremely stable pH sensor for shallow waters, designed for oceanographic research. The design of the SP101-SM sensor allows reaching the same accuracy achievable in the lab, but autonomously deployed in the ocean, allowing long term measurements without human intervention.

Manufacturer

SensorLab
SensorLab

SensorLab S.L.
Edificio Polivalente II, Oficina 16
Parque Científico Tecnológico
Campus Universitario de Tafira
35017 Las Palmas de Gran Canaria
Spain

+34 928459930

http://www.sensorlab.es/

Technical specifications

Depth rating-
Max. pressure-
Housing materialHard anodized 6060 aluminum
Power supply9 – 18 Vcc
Power consumption-
Weight15,2 Kg
Size240Øx480 mm
Accuracy±0.005 pH
Resolution< 0.002 pH
Connector-
Calibration-
Temperature compensation-
Operating temperature range-5 to 35ºC
