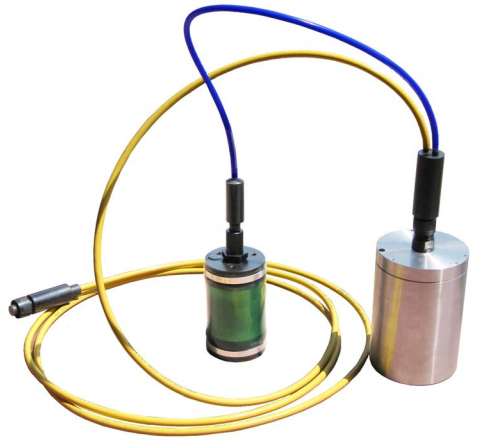

DT-405D(V)1
Manufacturer
SMID Tecnology S.R.I.
Via Vincinella, 14
19037-Santo Stefano di Magra SP
Italy
+39 0187-695911
+39 0187-630503
Technical specifications
| Depth rating | 2500 m |
| Max. pressure | 2100 m |
| Housing material | Delrin |
| Power supply | 12 Vdc |
| Power consumption | 1800mW |
| Weight | 12.5 kg |
| Size | 89Øx150 mm |
| Resonant frequency | 20 kHz |
| Transmit sensitivity | - |
| Receive sensitivity | -197±1 dB re 1V/µPa @ 1 kHz |
| Frequency rate | 50·10^-3 to 20·10^3 Hz |
| Cable/Connector | - |
