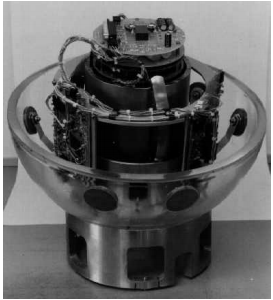

CMG-1T

The Guralp Systems CMG-1 range of seismometers are ultra-broadband triaxial, force-feedback observatory grade instruments. The instruments are suitable for surface vaults, subsurface vaults and posthole installations.

Manufacturer

Guralp Systems
Guralp Systems

Guralp Systems Limited
Midas House
Calleva Park
Aldermaston
Reading
RG7 8EA
United Kingdom

+44 (0) 118 981 9056

+44 (0) 118 981 9943

http://www.guralp.com/

Technical specifications

Depth rating-
Max. pressure-
Housing materialStainless steel case
Power supply10 – 36VDC or 5VDC supply (optional)
Power consumption12 V DC (75mA)
Weight-
Size168Øx270 mm
Frequency scale360 sec to 50 Hz
Damping (open circuit)-
Sensivity (open circuit)2 × 750V/m/s
High> 107dB horizontal, > 111dB vertical
Max. possible tilt
