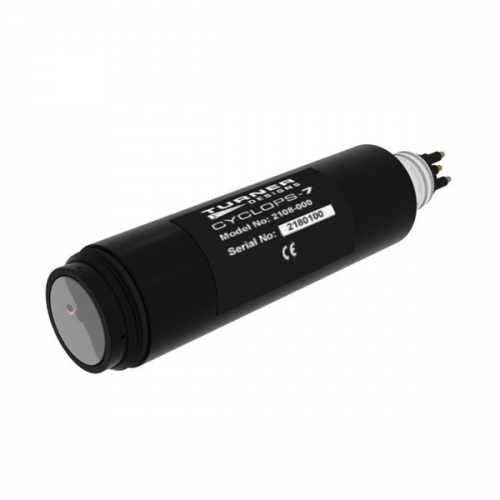

Cyclops 7-C
Click to zoom
View info document (261.44 KB)
View manual file (658.7 KB)
Observatory reference: ESTOC[2014-****], PAP[2013-****]
Standard: ESTOC, PAP
The CYCLOPS-7â„¢ line of submersible sensors is a high performance, compact sensor at a significantly lower price than traditional submersible sensors. The CYCLOPS-7â„¢ combination of price, performance and size makes the sensor very attractive for oceanographic, freshwater and dye tracing applications.
CYCLOPS-7â„¢ was designed specifically for integration into any platform that supplies power and datalogging.
Manufacturer
Turner Designs, Inc.
845 W. Maude Avenue
Sunnyvale, CA 94085
USA
+1 (877) 316-8049
+1 (408) 749-0994
+1 (408) 749-0998
Technical specifications
| Depth rating | 600 m |
| Max. pressure | 600 m |
| Housing material | Stainless steel, Plastic or Titanium |
| Power supply | 3 - 15 VDC |
| Power consumption | < 300mW typical |
| Weight | 142 g |
| Size | 2.23Øx14.48 cm (SSt or Ti); 3.18Øx14.48 cm (Delrin) |
| Excitation wavelength | 475 nm |
| Detector | - |
| Range | 0-500 μg/L |
| Detection limits | 0.025 μg/L |
| Interface | DataBank Datalogger |
| Connector | - |
| Operating temperature | -2 to 50 °C |
