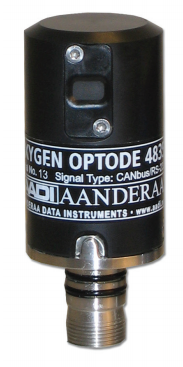

Oxygen Optode 4835
The AADI Oxygen optode was the first and only to measure dissolved oxygen for years without drift - now it is one of the fastest!
The Oxygen optode is designed to measure absolute oxygen concentration and % saturation. The optode can be used from streams to deep sea, from fish farms to waste water and from polar ice areas to hydrothermal vents. The lifetime-based luminescence quenching principle offers the following benefits:
Response time <8 sec (63%)
High accuracy
Not stirring sensitive (it consumes no oxygen)
Lower fouling sensitivity
Measures absolute oxygen concentrations without repeated calibrations
Better long-term stability
Hot water monitoring
Less affected by pressure
Not sensitive to H2S
Not freezing sensitive
Manufacturer
Aanderaa Data Instruments Inc.
P.O.Box 34 Slåtthaug
N-5851 Bergen
Norway
+47 55 60 48 00
+47 55 60 48 01
Technical specifications
| Depth rating | 0-300 m |
| Max. pressure | 300 m |
| Housing material | Titanium, POM |
| Power supply | 5 to 14Vdc |
| Power consumption | 0.16 +48mA/S where S(sec); Maximum:100mA |
| Weight | 118 g |
| Size | Ø36 x 86mm |
| Accuracy | <8 µM or 5% |
| Response time | <25 sec (63%) |
| Resolution | < 1 µM |
