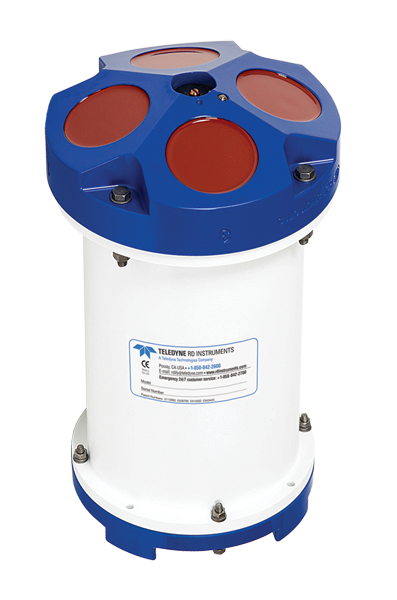

Workhorse Sentinel 300 kHz

Workhorse Sentinel 300 kHzClick to zoom

Print this page

View info document (299.68 KB)

More info on the web

Observatory reference: Antares [2010-****], Biscay AGL[2007-****], DELOS A[2009-****], DELOS B[2009-****]

The self-contained Sentinelis Teledyne RD Instruments’ most popular and
versatile Acoustic Doppler Current Profiler (ADCP) configuration, boasting
thousands of units in operation in over 50 countries around the world.

By providing profiling ranges from 1 to 165m, the high-frequency Sentinel
ADCP is ideally suited for a wide variety of applications. Thanks to
Teledyne RDI’s patented Broadband signal processing, the Sentinel also
offers unbeatable precision, with unmatched low power consumption,
allowing you to collect more data over an extended period.

The lightweight and adaptable Sentinel is easily deployed on buoys, boats,
or mounted on the seafloor. Real-time data can be transmitted to shore
via a cable link or acoustic modem, or data can be stored internally for
short or long-term deployments. The Sentinel is easily upgraded to include
pressure, bottom tracking, and/or directional wave measurement—for the ultimate data collection solution.

Manufacturer

Teledyne RD Instruments
Teledyne RD Instruments

Les Nertieres
5 Avenue Hector Pintus
06610 La Gaude
France

+33 492 110 930

+33 492 110 931

http://www.rdinstruments.com

Technical specifications

Frequency300 kHz
Max. profiling range165 m
Cell size0.25-8
Operating depth200 to 6000 m
Max. transmit450 Watt hours
Blank distance-
Accuracy0.5 % ± 0.5 cm/s
Max. water velocity20 m/s
Number of cells1-255
Max. ping rate10 Hz
Transducer4 beam convex
Transducer beam angle20°
Housing-
CommunicationRS232 or RS422
Internal memory4 GB using standard memory cards
Transducer assembly diameter205 mm
Housing diameter229 mm
Overall length396 mm
Weight in air13 kg
Weight in water4.5 kg
Temperature accuracy±0.4%
Temperature range-5 to 45°C
Tilt accuracy±0.5°
Tilt range±15°
Compass accuracy±2°
Compass max. tilt±15°
