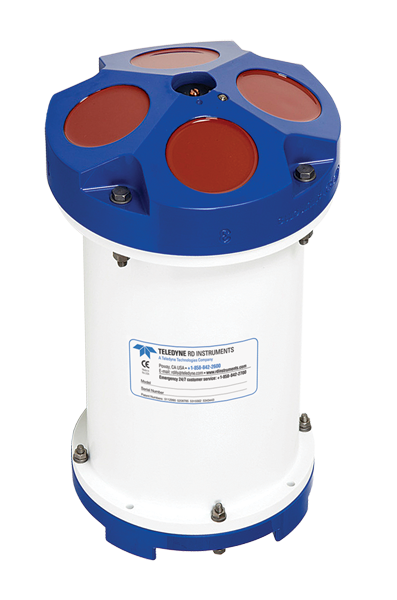

Workhorse Sentinel 600 kHz
Click to zoom
View info document (299.68 KB)
Observatory reference: NEMO-SN1[2014-****]
Standard: NEMO-SN1
The self-contained Sentinel is Teledyne RD Instruments’ most popular and versatile Acoustic Doppler Current Profiler (ADCP) configuration, boasting thousands of units in operation in over 50 countries around the world.
By providing profiling ranges from 1 to 165m, the high-frequency Sentinel ADCP is ideally suited for a wide variety of applications. The Sentinel also offers unbeatable precision, with unmatched low power consumption, allowing you to collect more data over an extended period.
The lightweight and adaptable Sentinel is easily deployed on buoys, boats, or mounted on the seafloor. Real-time data can be transmitted to shore via a cable link or acoustic modem, or data can be stored internally for short or long-term deployments. The Sentinel is easily upgraded to include pressure, bottom tracking, and/or directional wave measurement—for the ultimate data collection solution.
Manufacturer
Teledyne RD Instruments
Les Nertieres
5 Avenue Hector Pintus
06610 La Gaude
France
+33 492 110 930
+33 492 110 931
Technical specifications
| Frequency | 600 kHz |
| Max. profiling range | 70 m |
| Cell size | 0.25-8 |
| Operating depth | 200 to 6000 m |
| Max. transmit | 450 Watt hours |
| Blank distance | - |
| Accuracy | 0.3%±0.3 cm/s |
| Max. water velocity | 20 m/s |
| Number of cells | 1-255 |
| Max. ping rate | 10 Hz |
| Transducer | 4 beam convex |
| Transducer beam angle | 20° |
| Housing | - |
| Communication | RS232 or RS422 |
| Internal memory | 4 GB using standard memory cards |
| Transducer assembly diameter | 205 mm |
| Housing diameter | 178 mm |
| Overall length | 396 mm |
| Weight in air | 13 kg |
| Weight in water | 4.5 kg |
| Temperature accuracy | ±0.4% |
| Temperature range | -5 to 45°C |
| Tilt accuracy | ±0.5° |
| Tilt range | ±15° |
| Compass accuracy | ±2° |
| Compass max. tilt | ±15° |
