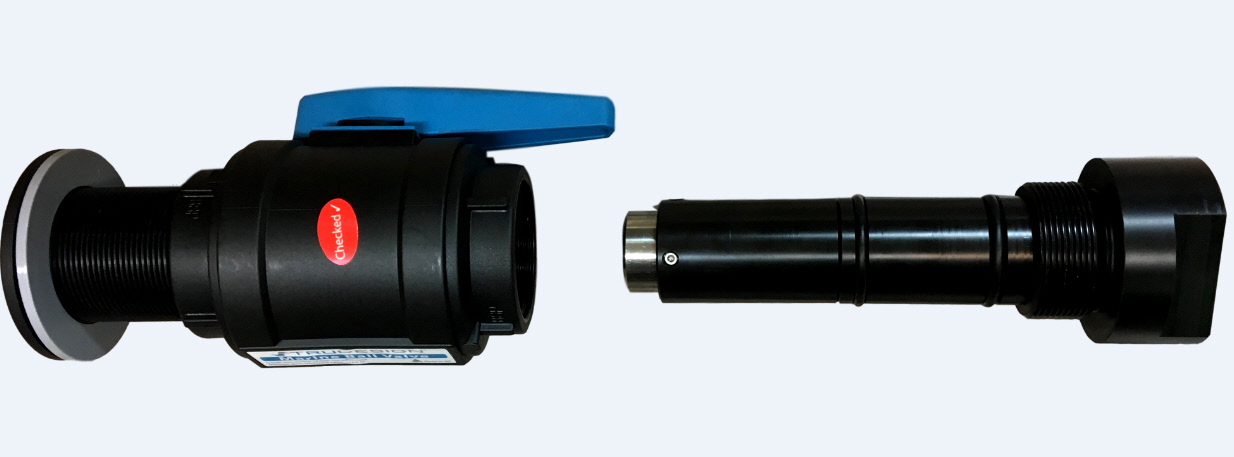

Ocean Temperature Sensor

Ocean Temperature SensorClick to zoom

Print this page

View info document (561.05 KB)

More info on the web

Observatory reference: Max Planck Institute for Chemistry

The SubCtech “Ocean-Temperature Sensor” is a member of the OceanLine family of high performance scientific sensors. It is the first professional temperature sensor to pass the ship hull and measure direct in-situ. All the well-known problematic effects and interferences of measuring at the water intake tubes are removed. On the other hand, the unique design allows a very easy maintenance from inside without leaking water into the ship. The flange construction can be installed easily in any hull constructions, e.g. innovative carbon materials. The design withstands highest mechanical forces against the hull. The sensor includes a complete signal processing unit and transmits data via a rough RS-232 or RS-485 link. USB interfaces are supported as well. The power consumption was optimized for battery powered systems.

Manufacturer

SubCtech GmbH
SubCtech GmbH

Wellseedamm 3,
24145 Kiel
Germany

+49 (0) 431-22039 880

+49 (0) 431-22039 881

http://www.subCtech.com

Technical specifications

Range-2°C to +36°C
Accuracy± 0,005 °C
Resolution0,0006 °C
Response time0.5s
Depth ratingSurface ship hull
Supply voltage+10V to +32V
CommunicationsRS232 ASCII NMEA-0183
Memoryno
Dimensionsd60mm x 200m
Weight in air2.5kg
Weight in waterNA
MaterialsPOM, Chopper
