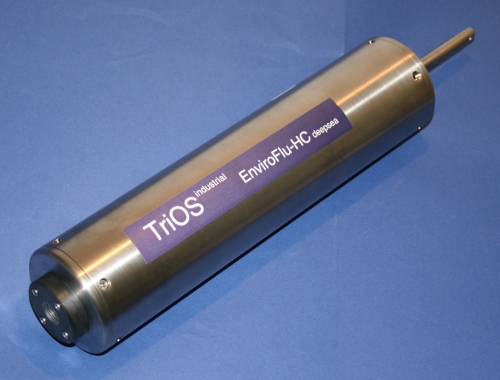

enviroFlu-DS

The enviroFlu-DS is a new generation of high sensitive deepsea submersible sensors for oil-in-water measurement. The used UV fluorescence principle for detection is much more sensitive than any other existing detection principle. This allows the detection of PAH traces down to single ppb levels. The pressure housing is completely made of titanium and rated to 6,000m / 20,000 feet. Analog outputs, as well as a RS232 interface makes it easy to integrate the sensors in any control or data logging system. Solid secondary standards are available for all versions and grant fast and reliable functional checks, without the need of chemicals or laboratory.

Manufacturer

TriOS GmbH
TriOS GmbH

Werftweg 15
26135 Oldenburg
Germany

+49 (0) 441-485-980

+49 (0) 441-4859-820

http://www.trios.de

Technical specifications

Depth rating-6,000 m / 20,000 feet
Max. pressure-
Housing material- titanium
Power supply- 12 .. 26 VDC
Power consumption-
Weight-
Size- diameter: 80mm, length: 414mm
Excitation wavelength- 254 nm
Detector- 360 nm peak
Range- 0 .. 50 ppb or 0 .. 500 ppb - 0 .. 500 ppb or 0 .. 5000 ppb
Detection limits- 0.1 ppb in pure water
Interface- RS232; 0 .. 5 V; 4 .. 20 mA
Connector- 8 pin SubConn micro series male
Operating temperature- 0 .. 40°C
