3-C Seismometer K/MT 210

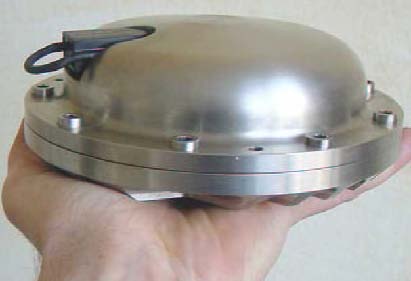

The seismometer K/MT 210 is a flat instrument as big as a palm completely made from titanium.
Its special shape and the bottom plate with grooved profile enable a good positioning on the sea floor and optimise the shear wave coupling.
The seismometer can be equipped with up to three geophones/sensors of diverse frequencies each one measuring different seismic bottom movements.
The pressure-proved material titanium allows the seismometer to be deployed up to 6000m water depth.
Manufacturer
K.U.M. Umwelt-und Meerestechnik Kiel GmbH
Wischhofstr. 1-3, Geb. D5
24148 Kiel
Germany
+49 (0) 431-7209220
+49 (0) 431-7209244
Technical specifications
| Depth rating | 6000m |
| Max. pressure | - |
| Housing material | - titanium |
| Power supply | - |
| Power consumption | - |
| Weight | - |
| Size | - |
| Frequency scale | -from 4.5Hz (normal), 14Hz, 30Hz to 100Hz Special low frequency: 1Hz for recording of micro-earthquakes |
| Damping (open circuit) | -0.56 +/- 5% |
| Sensivity (open circuit) | -28.8V/m/s +/- 5% |
| High | - |
| Max. possible tilt | - |
